In hotels, factories, dormitories, hospitals, schools and venues where the water consumption is proportionally higher, energy efficiency becomes extremely important. Our hot water systems allow for the effective generation and transportation of hot water with outstanding efficiency.
A. Easy installation, simple controls, and minimal maintenance;
B. The frequency conversion pressured design is able to supply comfortable water on demand;
C. Eight Preventative Measures: Anti-scald, anti-electrical leaks, anti-water leakage, anti-freezing, anti- potential danger from blockages and patching, anti-scaling, anti-excess lead, anti-overheating
D. Three strengths: Supplies hot water (no matter the weather), maintains consistent temperatures for hot water on demand and is controlled remotely by a large data platform
E. High efficiency, security, and highly cost effective.

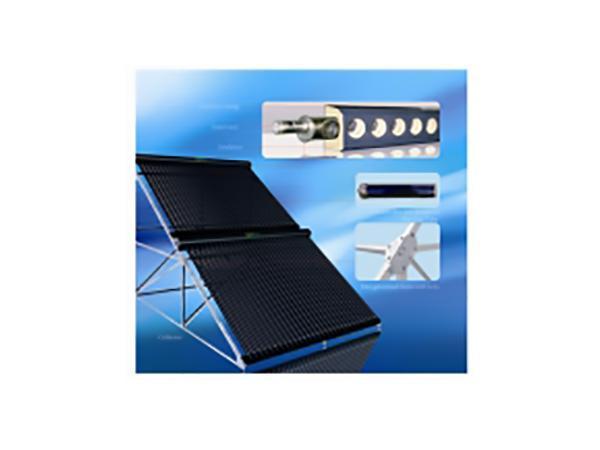

1. Solar collector
The Himin JPS collector is composed of a high-efficiency vacuum tube. The unit uses the most advanced sputtered double cermet selective absorber coating that features an absorptivity of 0.94 and emissivity of 0.04. It has water inside the glass tube. The bracket goes together with the collector. The water circulation is inside the collector header, the tubes and the water storage tank, which is called the direct system.
|Max Operating Pressure||0kPa|
|Heat Loss co efficiency||2.81W/(m2·K)|
|Vacuum tube||Borosilicate 3.3 Glass|
|Kind of Selective Coating||AlN/AIN-SS/Cu on glass|
|Header Casing||SPGC with Color|
|Header Inlet/Outlet||DN25 with male thread|
|Rubber Components||EPDM Silicone Rubber|
|Mounting Frame||Hot-dip Galvanized Steel/4mm|
|Collector Array Quantity||6|
1. Capacity ranges from 1,000L to 50,000L.
2. The on-site assembly reduces the transportation cost.
3. Two types of inner tank: stainless steel and hot-dip galvanizing sheet. The inner tank is connected by bolts and rubber sealing to ensure a lifetime of 15 years
4. The tank of 10,000L or less has optional backup electrical heating.
1. The tank capacity ranges from 1,000L to 3,000L.
2. All in one design and convenient installation.
3. The outer tank is made of glass fiber reinforced plastic (FRP); the inner tank is made of stainless steel.
4. The tank has electric heating as backup.
Himin designs and sets the program of control system in accordance to the diverse needs of customers and remote controlling.
