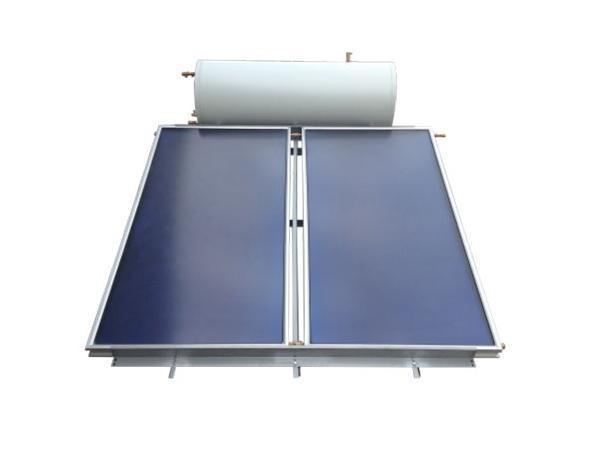

Non pressurized flat plate solar water heater coil inside

  1. Home
  2. Solar Heating
  3. Solar Water Heater
  4. Non pressurized flat plate solar water heater coil inside

Inner tank: SUS304-2B stainless steel, thickness:0.4mm
Outer tank: stainless steel/colored steel,thickness:0.4mm
Insulation layer: Polyurethane foam, thickness: 55mm.
Coil material: copper, diameter,φ16mm; thickness, 0.8mm
Frame: Adopt stainless steel, which is UV-resist and Corrosion-resist and suitable for different roof. Thickness: 1.5mm.

Dimension L*W*T 2000mmX1000mmX80mm
Gross area 2.00m2
Aperture area 1.84m2
Absorber area 1.73m2
Cover Tempered Glass
Cover transmission 89%
Absorptance ≥92%
Emission ≤8%
Net weight 35kg
Surface treatment chrome plating
Absorber material TP2 copper
Insulation Rock wool, glass fiber cotton (black backing) & polyurethane compound
Insulation thickness Back:45mm; Side:20mm
Border Aluminum alloy
