Integrated Pressurized Solar Water Heater

  1. Home
  2. Solar Heating
  3. Solar Water Heater
  4. Integrated Pressurized Solar Water Heater
MODEL Integrated pressurized solar water heater with enamelled tank
Inner tank material 2mm enamelled pressed steel coated 0.5mm porcelain enamel
Outer tank material colored steel sheet,thickness:0.4mm/stainless steel sheet,thickness:0.4mm/galvanized steel sheet,thickness:0.4mm
Outer tank diameter 460mm/480mm
Insulation layer 55mm,heat preservation 100 hours

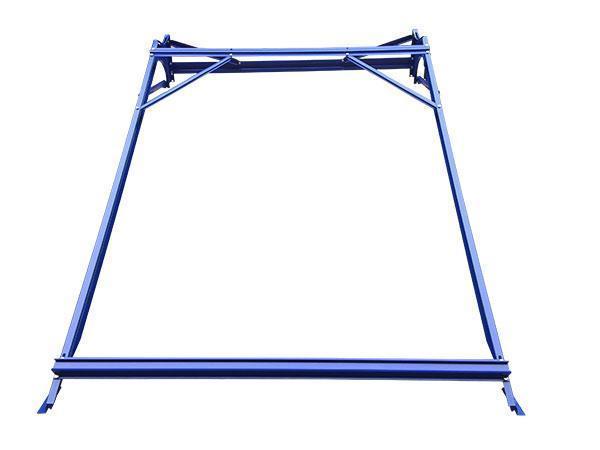

Frame and frame angle aluminum alloy,thickness:2mm 0-45°/stainless steel,thickness:1.2mm 27°,30°,38°,45°/galvanized steel,thickness:1.2mm 27°,30°,38°,45°
Heat pipe ø58mm*1800mm,three high vacuum tube
Lowest working temperature -10°C/-40°C
Heat pipe condenser size 9mm
Working pressure 7bar/0.7MPa
Testing pressure 12bar/1.2MPa
Needed accessories electrical heater, T/P valve, one way safety valve, Magnesium bar, controller, working stain, plastic cap
Hail resistance 20mm
Model Absorbing area(m2) Heat pipe Tank Capacity Qty.(Sets)
Diameter Length Number 20" 40HQ
HM-470-1800/58-15 2.07 ø58mm 1800mm 15 136L 41 91
HM-470-1800/58-16 2.21 ø58mm 1800mm 16 145L 44 98
HM-470-1800/58-18 2.49 ø58mm 1800mm 18 160L 40 90
HM-470-1800/58-20 2.76 ø58mm 1800mm 20 175L 35 73
HM-470-1800/58-24 3.32 ø58mm 1800mm 24 208L 30 68
HM-470-1800/58-30 4.15 ø58mm 1800mm 30 256L 25 55
