Uninterrupted PV Power System 1500W~5000W

Uninterrupted PV Power System 1500W~5000W

The uninterrupted PV power system is an all in one machine that includes a solar inverter, solar battery, charge controller, battery cabinet and solar modules. The system is widely used in areas with no power grid network, including villas, remote villages, islands, and other areas where there is no power supply. The pure sine wave AC output is 110V/220V/230V, 50Hz/60Hz.

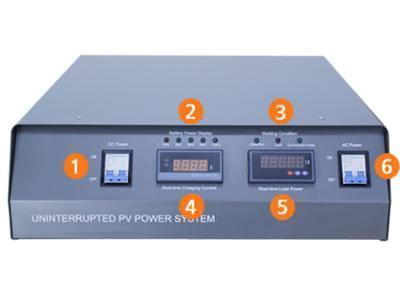

  • Front
    1. DC Power
    2. Battery Power Display
    3. Working Condition
    4. Real-time Charging Current
    5. Real-time Load Power
    6. AC Power

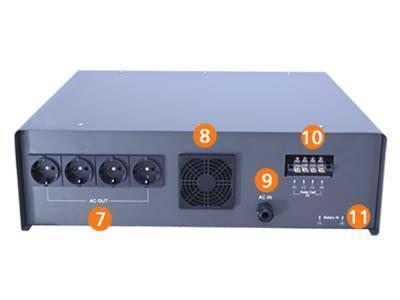

  • Back
    7. AC Out
    8. Cooling Fan
    9. AC IN
    10. Solar Cell IN
    11. Battery IN

Technical Data:
Model ISS1500Z ISS3000Z ISS5000Z
AC Output Power 1500W 3000W 5000W
Output Waveform Pure Sine Wave
Precision of Output Voltage 220V±3% or 110V±3%
Precision of Output Frequency 50Hz or 60Hz
Power factor 0.99
Overload ability 120%,30 seconds
Over Voltage Protection >29V >58V >58V
Low Voltage Protection < 20V < 40V < 40V
Peak power efficiency >94% >94% >94%
Switching time between PV power and grid electricity < 20ms
Battery Discharge Time (Rated Output Power) 1.5 hours
Solar Panel Charging Time 3.5 hours effective sunlight
Certificate CE & RoHs
Operational Environment:
Operating Temperature Range -10 ~ 55℃
Relative Humidity 0 ~ 90%
Operating Altitude 0 ~ 4000m
Standard Configuration details:
No. What's included ISS1500Z ISS3000Z ISS5000Z
1 Mainframe box 1PC 1PC 1PC
2 Cell box 1PC 2PCS 3PCS
3 Wheel 4PCS (Dia. 3 inch---Mounting H110mm)
4 Inverter 1500W 3000W 5000W
5 Controller 2*24V/30A 2*48V/30A 3*48V/30A

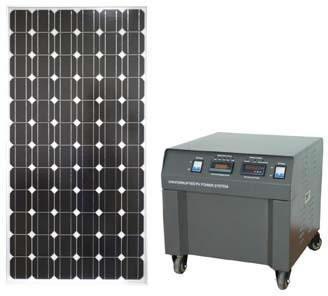

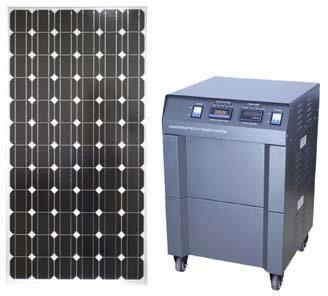

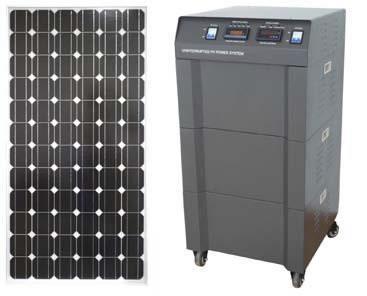

6 Photovoltaic Panel 1000W (250w*4pcs) 2000W(250w*8pcs) 3000W(250w*12pcs)
250W Panel Open Circuit Voltage(Voc) 37.56V 37.56V 37.56V
250W x 4 250W x 8 250W x 12
7 Lead acid battery 200Ah/24V 200Ah/48V 300Ah/48V
12V /100Ah x 4 12V/ 100Ah x 8 12V /100Ah x 12
Mechanical Data:
Mainframe box (mm/kg): L630*W545*H165 / 19.5
Cell box(mm/kg): L550*W545*H280 / 15.5

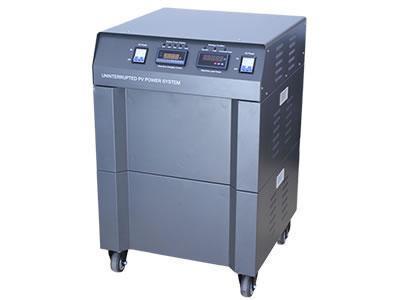

Assembled system box(mm/kg): L630*W545*H555 / 35 L630*W545*H835 / 50 L690*W710*H1115 / 67
Battery(mm/kg): L331*W173*H220(mm) Total H225mm / 29.5kg for one piece

Note: This system solution is just for reference. The capacity of the solar panel and batteries can be adjusted based on actual conditions and requirements.

Quotation for 1500W Uninterrupted (Off-grid) PV Power System
Configuration Details
ISS 1500Z Specification
Solar Panels 1000w=250W poly panel x 4 pcs(Each panel with 3M cable)
L1640*W992*H45 (mm)/pc
System Cabinet Lead Acid Battery Total: 200AH/24V 12V/100Ah*4 pcs
L331*W173*H220MM*4pcs
Inverter Pure sine wave 1500W
Controller 24V/30A*2pcs
Bypass switch(60A) Switch time < 20ms
Assembled system box Clearance Dimensions: L550*W550*H560mm
Accessories Solar Cable 90M of 4mm2 (based on 20M install distance )
Mc4 connectors 3 pairs
Y-type connectors 2 pairs
Gross weight /volume 1. System Cabinet: 0.42 m³/ 193kg (with battery) 2. Panels: 0.67 m³/126kg
Total Gross weight and Volume: 1.09 m³/ 319kg
Quotation for 3000W Uninterrupted (Off-grid) PV Power System
Configuration Details
ISS 3000Z Specification
Solar Panels 2000W=250W poly panel x 8 pcs(Each panel with 3M cable)
L1640*W992*H45 (mm)/pc
System Cabinet Lead Acid Battery Total: 200AH/48V 12V/100Ah*8 pcs
L331*W173*H220MM*8pcs
Inverter Pure sine wave 3000W inverter
Controller 48V/30A*2pcs
Bypass switch(60A) Switch time < 20ms
Assembled system box Clearance Dimensions: L550*W550*H840mm
Accessories Solar Cable 110M of 4mm2 (based on 20M install distance )
Mc4 connectors 6 pairs
Y-type connectors 2 pairs
Gross weight /volume 1. System Cabinet: 0.56 m³/ 312kg (include battery) 2. Panels: 1.13 m³/ 220kg
Total Gross weight and Volume: 1.69 m³/ 532kg

Quotation for 5000W Uninterrupted (Off-grid) PV Power System

Configuration Details
ISS 5000Z Specification
Solar Panels 3000w=250W poly x 12 pcs(Each panel with 3M cable)
L1642*W992*H46 (mm)/pc
System Cabinet Lead Acid Battery Total: 300AH/48V 12V/100Ah*12 pcs
L331*W173*H220MM*12pcs
Inverter Pure sine wave 5000W inverter
Controller 48V/30A*3pcs
Bypass switch(60A) Switch time < 20ms
Assembled system box Clearance Dimensions: L550*W550*H1120mm
Accessories Solar Cable 150M of 4mm2 (based on 20M install distance )
Mc4 connectors 9 pairs
Y-type connectors 3 pair
Gross weight /volume 1. System Cabinet: 0.65 m³/ 470kg (with battery) 2. Panels: 1.56m³/327kg
Total Gross weight and Volume: 2.21 m³/ 797kg

Product guarantee as below:
Inverters and charge controllers: 1 year.
Lead acid or Gel batteries: 1 year (about 350 cycles)
Solar panels: 90% at 10 years and 80% at 25 years of minimum rated power output.

Note:
The guarantee does not cover normal wear and tear, misuse, damage through misuse, alterations, incorrect installation or application, unauthorized service, modification, storage, transportation or damage resulting from power failure surges, natural disasters or other events outside company control.

Loads and working time reference:
Model ISS1500Z ISS3000Z ISS5000Z
Rated Output Power 1500W 3000W 5000W
Electric Appliances Service Time
10 x 11W CFL 110W 28H 110W 56H 110W 85H
1 x 150W 29" LCD TV 150W 21H 150W 42H 150W 63H
1 x 120W Freezer 120W 26H 120W 52H 120W 78H
3 x 60W Fan 180W 17H 180W 34H 180W 52H
1 x 350W Washer 350W 9H 350W 18H 350W 27H
2 x 150W Desktop Computer 300W 11H 300W 22H 300W 31H
1 x 800W / / 800W 7.5H 800W 11.5H
microwave oven
1 x 1500W air condition / / 1500W 4H 1500W 6H
1 x 1800W heating / / / / 1800W 5H
Full load 1500W 1500W 2H 3000W 2H 5000W 1.8H
Note: The data is only for reference. The specific time will be affected by load, the charge efficiency or aging of battery. Please note that powerful appliances with motors or heating elements, such as air conditioners, microwave ovens, water heating systems and so on often have a massive surge of starting power about 3 – 4 times the power of their 'running' power.
